CT CURRENT SIMULATOR MCTA-5
The CT current simulator is used for verification and setting of CT current-operated temperature measurements at transformers for determining the thermal image based on the secondary current.
Your benefits at
a glance
|
Product description

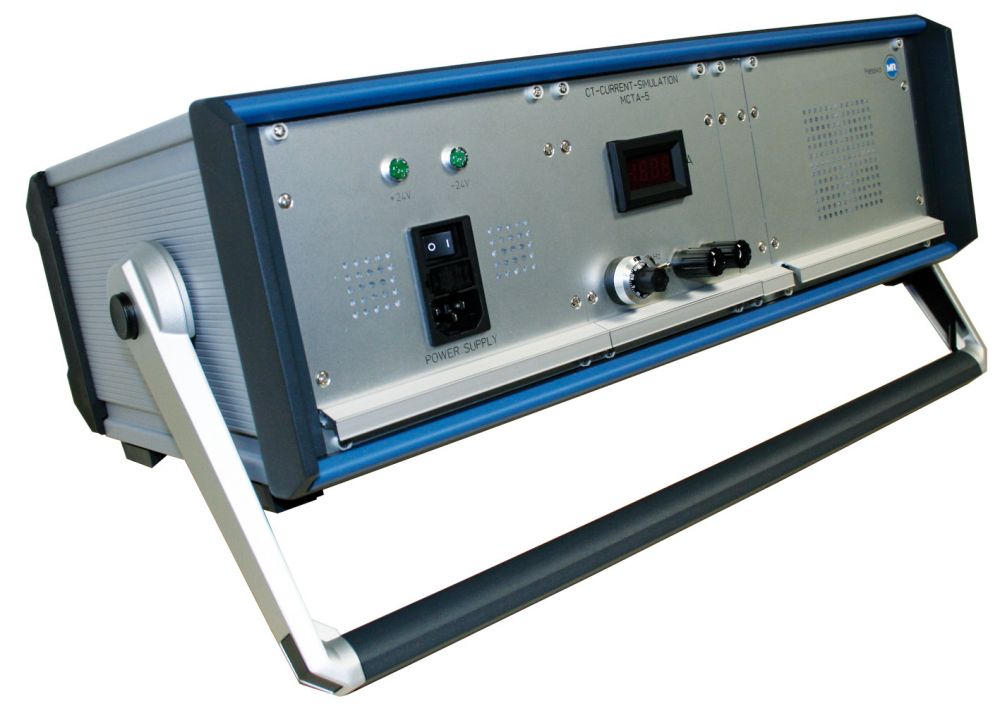

The CT current simulator can be used on the test bench, during commissioning or during maintenance of CT current - operated temperature measurements. It is a portable unit (compact housing with carrying handle) and has been developed for mobile application at or on the disconnected transformer.
The alternating current is set via a control knob and shown on the display. The AC is kept constantly load- independent (max. two thermometers in row or max. 40VA). The output frequency (50/60 Hz) can also be preselected.
Highlights at a glance
- Application on the test bench, during commissioning or during maintenance
- Designed for service purposes: compact device; easy to transport
- Easy to operate and high functional reliability
- Constant AC (adjustable between 0 and 5A) up to 40VA load
