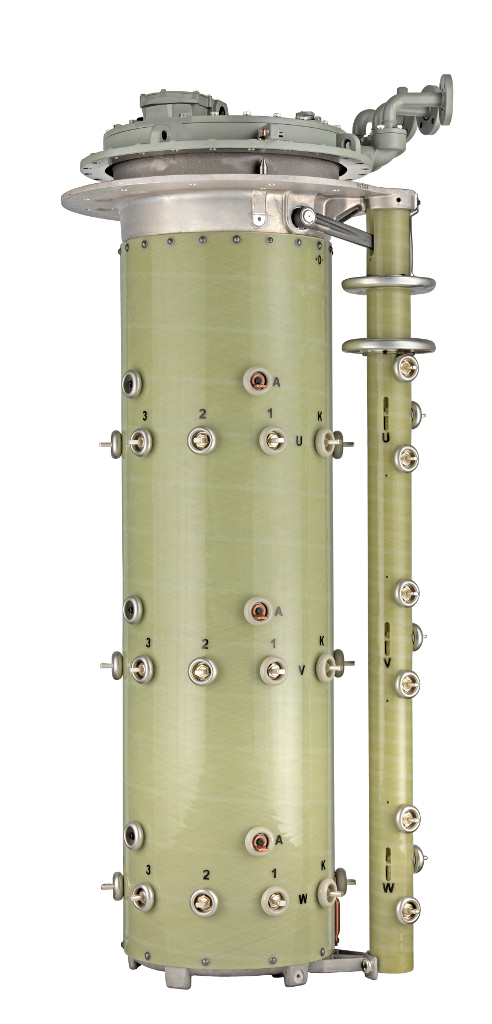

VACUTAP® VV®
On-load tap-changer for network applications.
YOUR BENEFITS AT
A GLANCE
|
TECHNICAL DATA
| Max. rated through-current single phase | 400 A |
| Max. rated through-current three phase | 600 A |
| Max. rated step voltage | 2,000 V |
| Max. rated switching capacity single-phase / three-phase |
700 kVA |
| Highest voltage for equipment Um | 40 - 145 kV |
| Application at neutral point (three-phase) or at any selectable winding position | |
| Operating positions without change-over selector | 12 max. |
| Operating positions with change-over selector | 23 max. |
PRODUCT DESCRIPTION
It’s maintenance-free up to 300,000 operations and suitable for most network applications. Thus your transformer lifecycle costs are reduced significantly.
