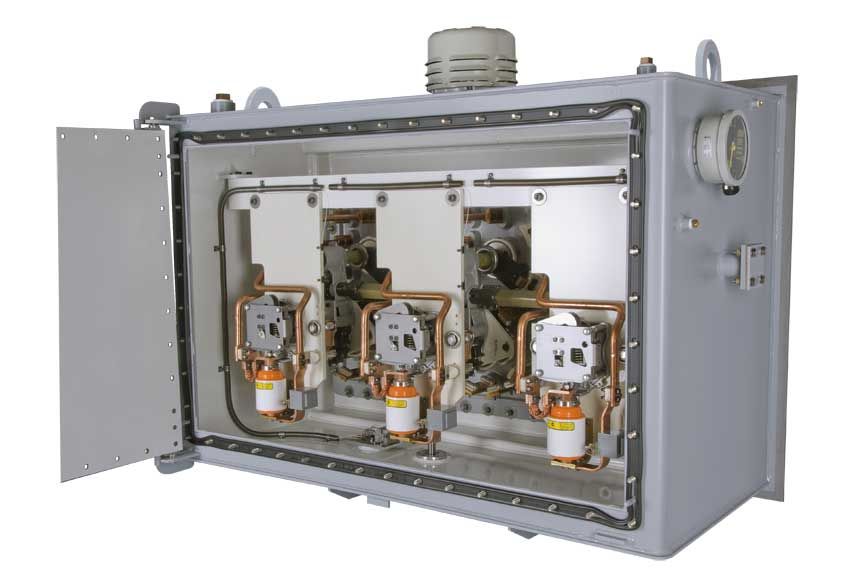

VACUTAP® RMV-II
On-load tap-changer in reactor technology
Your benefits at a glance
|
Technical Data
| Max. rated through-current | 2,500 A |
| Max. rated step voltage Tap-to-Tap | 2,000 V |
| Max. rated switching capacity | 2,500 kVA |
| Max. voltage for operational equipment Um | 72.5 kV |
| Application: At any selectable winding position. | |
| Operating positions without change-over selector | max. 17 |
| Operating positions with change-over selector | max. 33 |
Product description
Our first reactance on-load tap changer with vacuum interrupters and the most impressive performance history since its introduction by the end of the 1980ies. Area of application: primarily North America.
