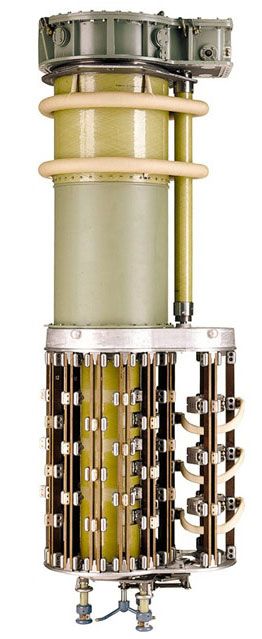

OILTAP® G
The on-load tap-changer for power transformers with highest capacities.
Your benefits at a glance
|
Technical Data
| Max. rated through-current single-phase / three-phase: | 2,000 A |
| Max. rated step voltage | 5,000 V |
| Max. rated switching capacity single-phase / three-phase: | 5,000 kVA |
| Max. voltage for operational equipment Um | 72.5 - 362 kV |
| Application: At the neutral point (three-phase) or as single-phase unit at any selectable winding position. | |
| Operating positions without change-over selector | 18 max. |
| Operating positions with change-over selector | 35 max. |
